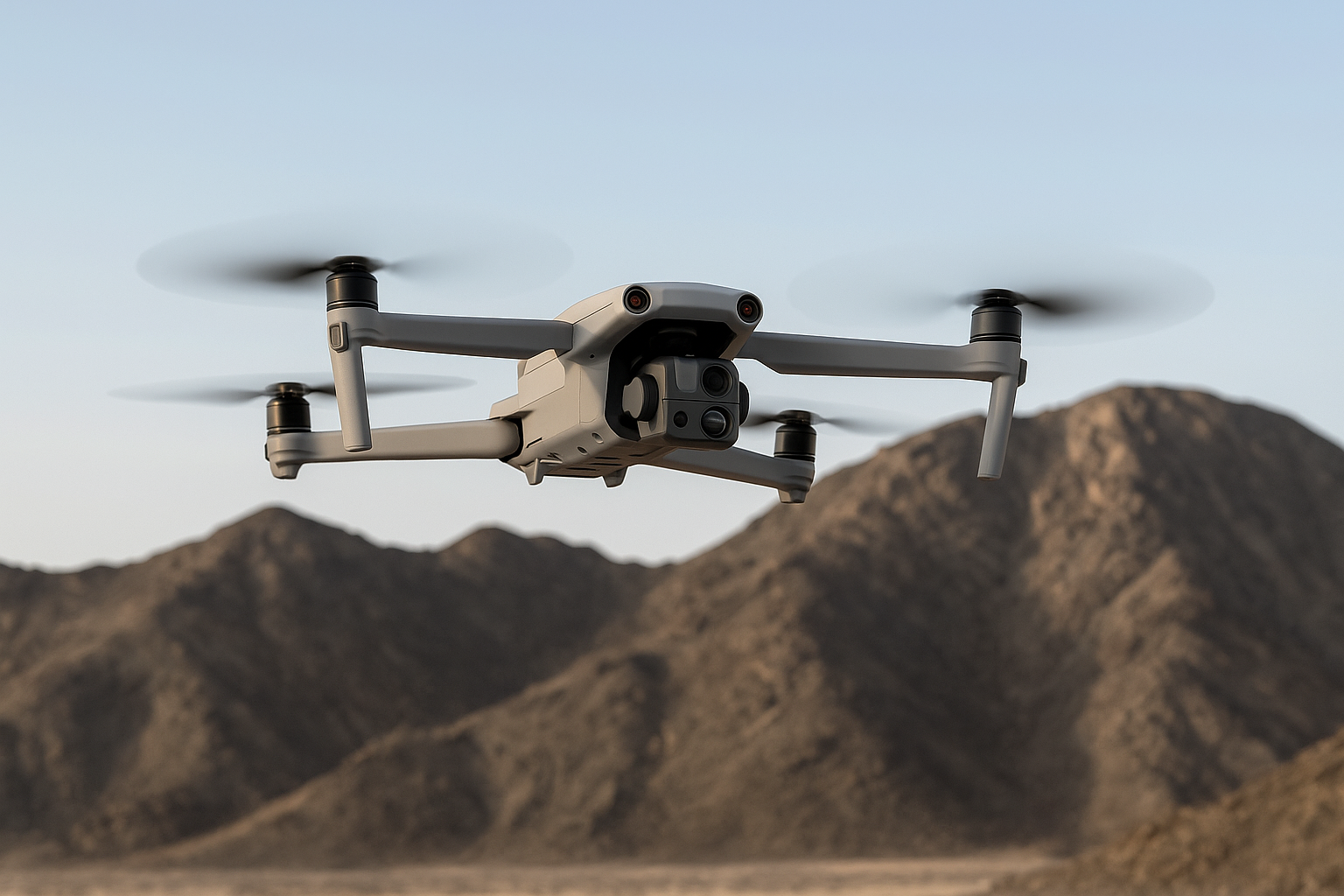

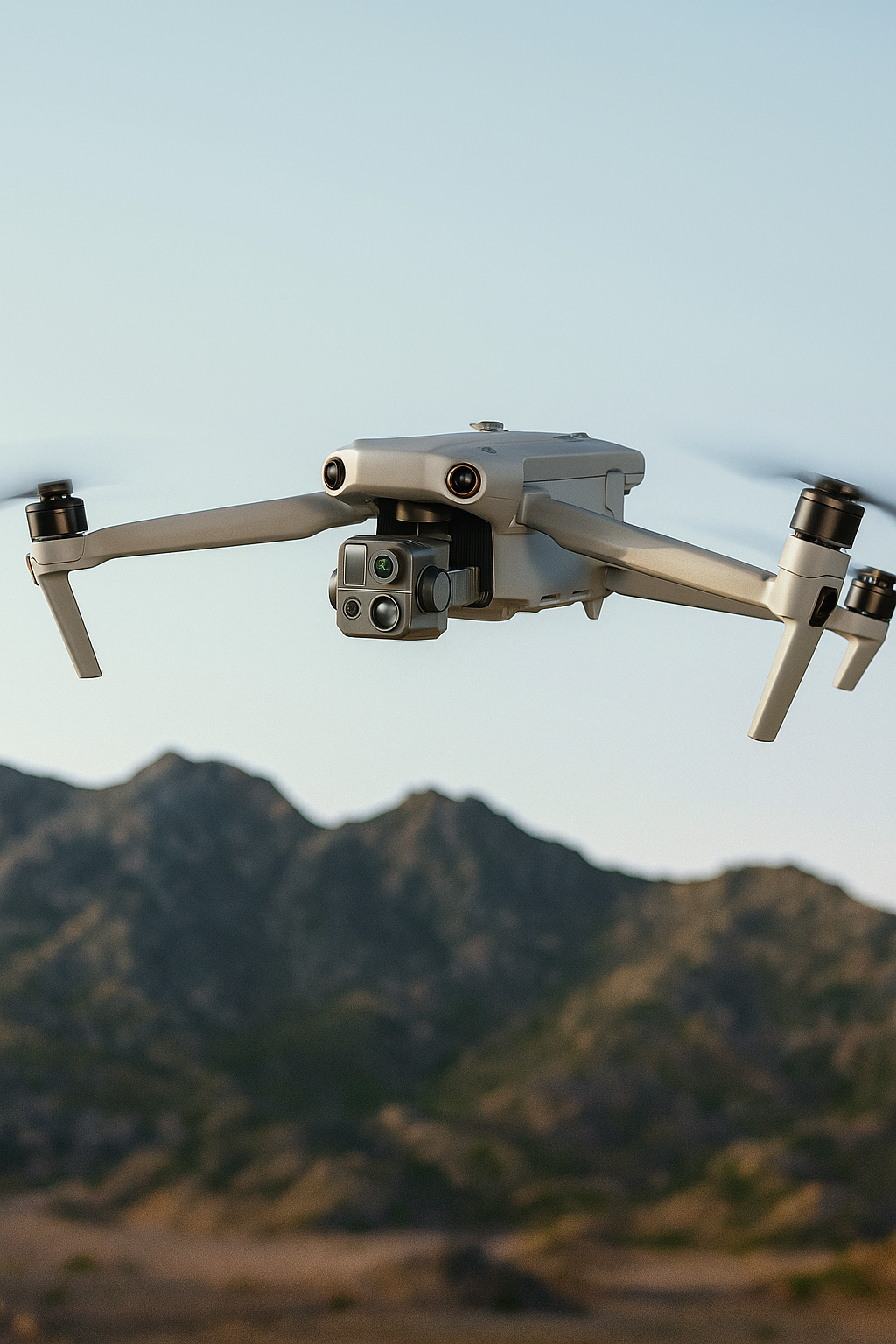

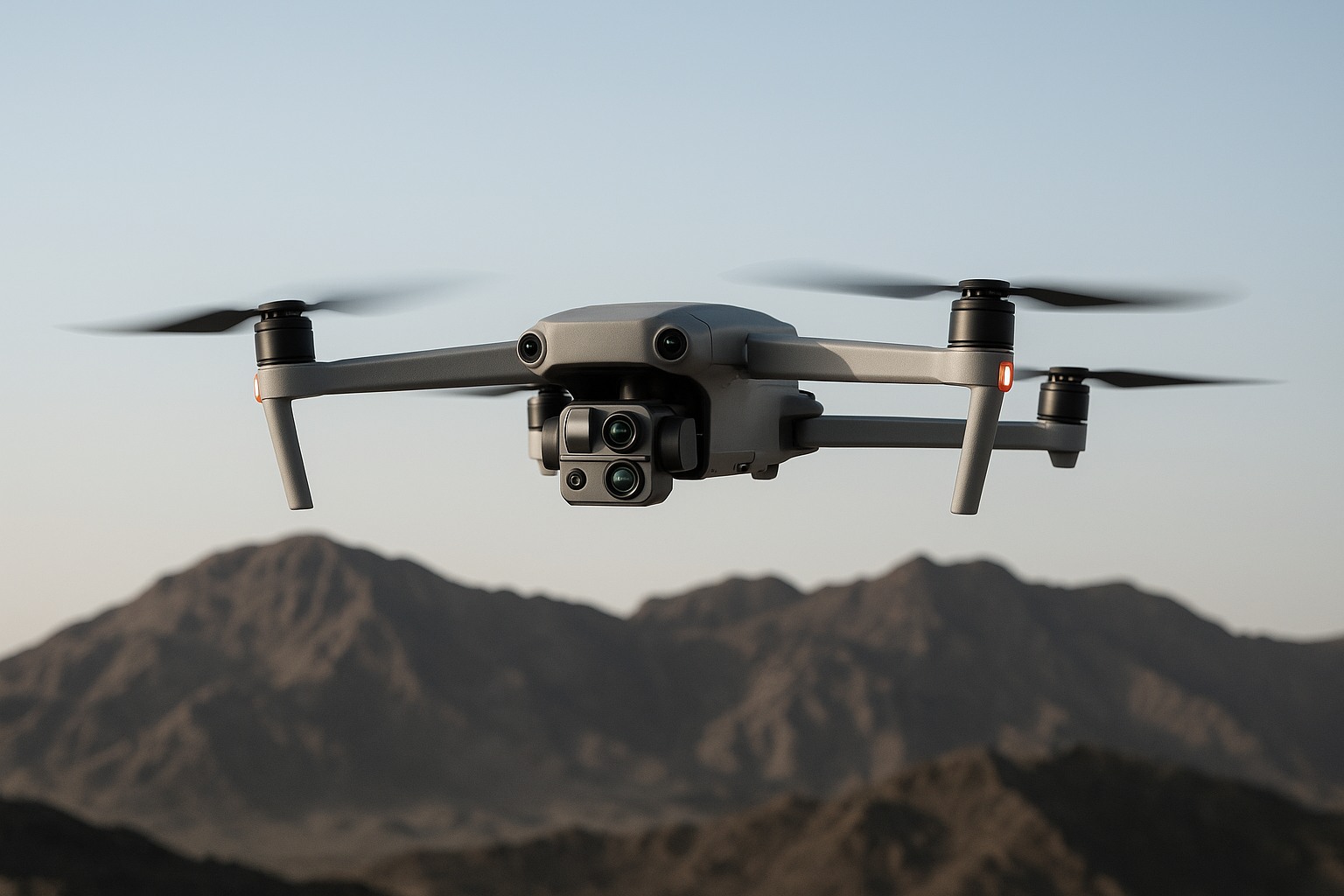

Investigate S2
GPS-denied autonomous scout
Precision pathfinding — anywhere.
Engineered for autonomy in GNSS-compromised zones, the Investigate S2 utilizes advanced vision-based navigation and AI anti-jamming algorithms. It performs global path planning, 3D reconstruction, and precise obstacle avoidance, ensuring mission reliability even in complex RF environments.
S2
GPS-denied flight · 3D scene reconstruction · 720° omnidirectional obstacle avoidance · Ultra anti-jamming
Weight
1600 g
Wheelbase
464 mm
Folded Size
257 × 136 × 133 mm
Unfolded Size
576 × 660 × 149 mm
Endurance
42 min
Max Control Range
15 km
Protection Grade
IP43
Max Payload
360 g
Ceiling
800 m
Wind Resistance
12 m/s
Operation Temp
-20°C ~ +50°C
Video Transmission
1080P@30FPS · <150ms latency
FusionRay 2T — Multi-Sensor Payload
Zoom Camera: 48MP · 4000×3000@30fps · 10× optical / 160× hybrid · F2.8–F4.8
IR Camera: 640×512 · 13mm · 16× digital zoom
Wide-Angle: 50MP · 1/1.28" CMOS · F1.9 · 85° FOV · 23mm EFL
Laser Rangefinder: 5–1200m · ±(1m + D×0.15%) accuracy
Obstacle Avoidance: T2 binocular fisheye + mmWave radar · 720° omnidirectional
IR Camera: 640×512 · 13mm · 16× digital zoom
Wide-Angle: 50MP · 1/1.28" CMOS · F1.9 · 85° FOV · 23mm EFL
Laser Rangefinder: 5–1200m · ±(1m + D×0.15%) accuracy
Obstacle Avoidance: T2 binocular fisheye + mmWave radar · 720° omnidirectional
Use Cases
- Operations in GPS-denied or signal-jammed environments
- Power grid and high-voltage line inspection
- Law enforcement operations in complex urban RF environments
- Firefighting reconnaissance with real-time thermal mapping
- Critical infrastructure monitoring requiring precision target tracking
Key Features
- GPS-denied flight with high-precision visual navigation and autonomous pathfinding
- 720° omnidirectional obstacle avoidance via binocular fisheye + mmWave radar
- Ultra-strong anti-jamming — detects spoofing across flight control, GNSS and video link
- 160× hybrid zoom discerns vehicles at 2km distance
- Integrated laser rangefinder with 1.2km precision ranging
- 42-minute endurance enables wide-area coverage in a single flight
