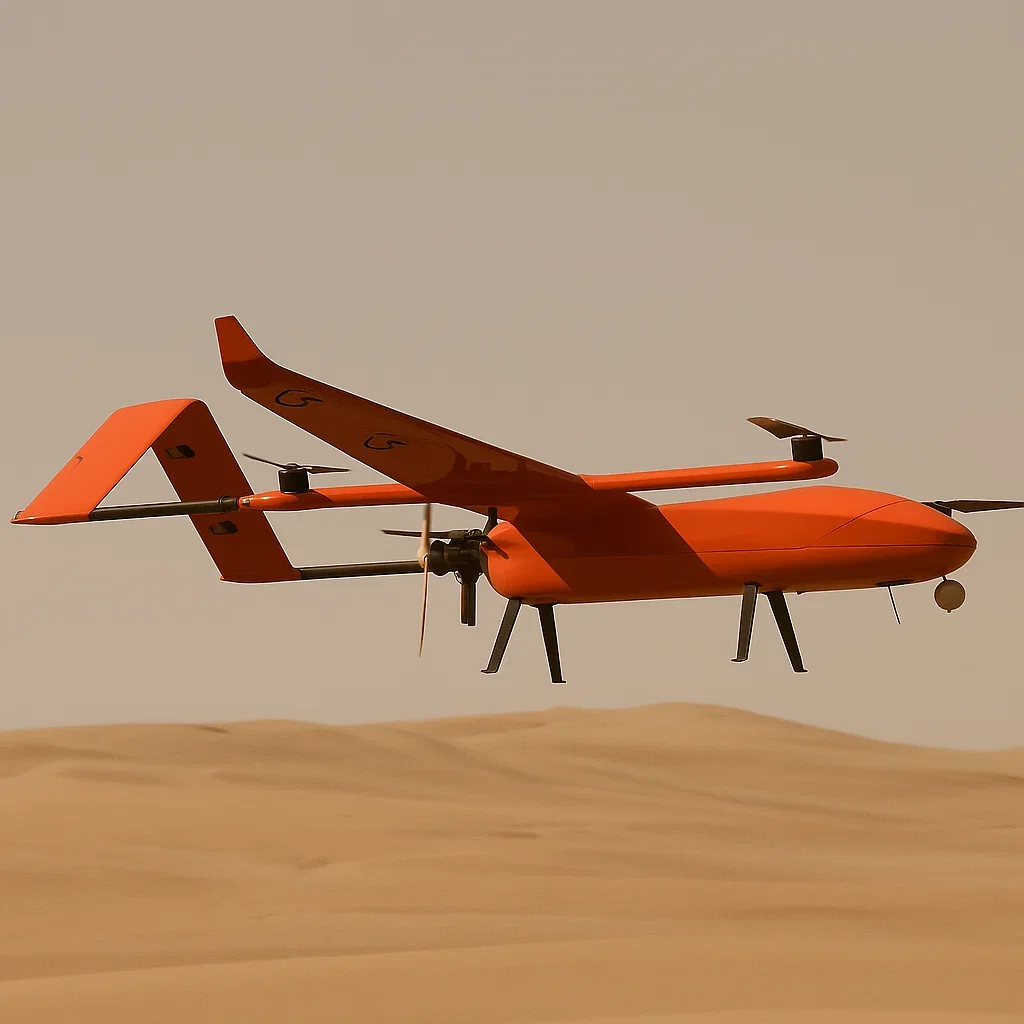

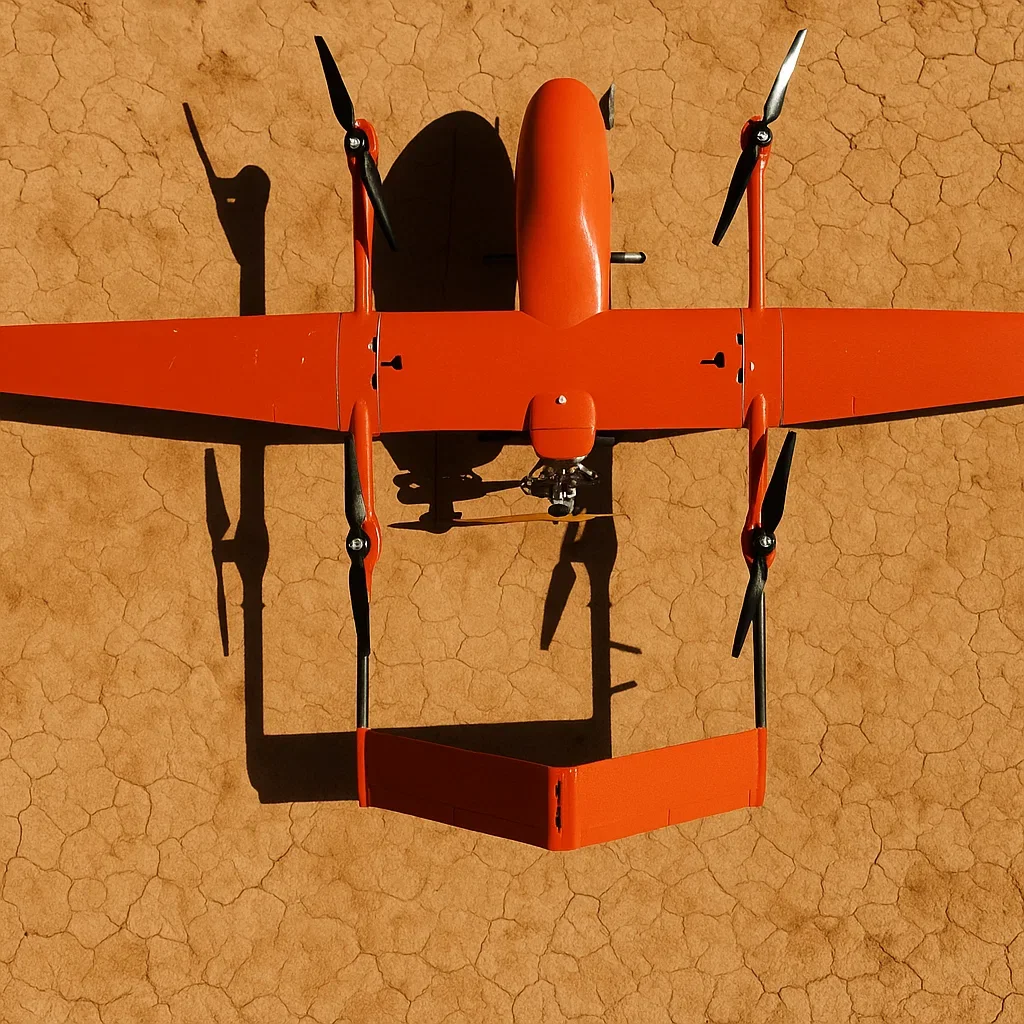

HK-G50
Modular VTOL composite UAV
Rugged autonomy for all-weather missions.
The HK-G50 is a composite-wing VTOL (Vertical Takeoff and Landing) unmanned aerial system engineered for flexible deployment and exceptional endurance. Its detachable modular design allows rapid assembly, field servicing, and transport, while the aviation-grade carbon fiber body ensures high strength and low weight. Capable of both fixed-point and mobile platform takeoff, the HK-G50 delivers fully autonomous flight, precise navigation, and reliable performance in demanding conditions. With a 50 kg payload capacity and long endurance, it supports multi-mission applications from aerial logistics to reconnaissance and mapping.
HK-G50
Composite wing VTOL · 50kg payload · 16h endurance · 1000km range · DGPS precision landing · IPX4
Length
3620 mm
Wing Span
6520 mm
Height
1360 mm
Max Takeoff Weight
160 kg
Endurance
16h (20kg) · 6h (40kg) · 3h (50kg)
Max Altitude
4500 m
Task Payload
50 kg
Oil Consumption
4.5 L/h
Cruising Speed
110–150 km/h
Fuel Tank
35 L
Range
1000 km
Wind Loading
Level 4 T&L · Level 6 flight
Body Material
Aviation carbon fibre composite
Operation Temp
-20°C ~ -55°C
Body Protection
IPX4
Use Cases
- Logistics and cargo delivery to remote or hard-to-access locations
- Precision mapping and photogrammetry surveys
- Environmental monitoring and pipeline inspection
- Emergency supply delivery and disaster relief logistics
- Long-range maritime surveillance and patrol
Key Features
- Quick-release modular structure for rapid field assembly and transport
- VTOL eliminates runway requirements — operates from any clear area
- DGPS remote fixed-point takeoff and landing for precision operations
- IPX4 protection for operations in rain, snow and adverse conditions
- 16-hour endurance with 20kg payload for extended mission profiles
- Flexible command terminal selection to match operational requirements
