HK-PASSKE
Long-endurance multi-role UAV
Extended reach, precision integration, limitless versatility.

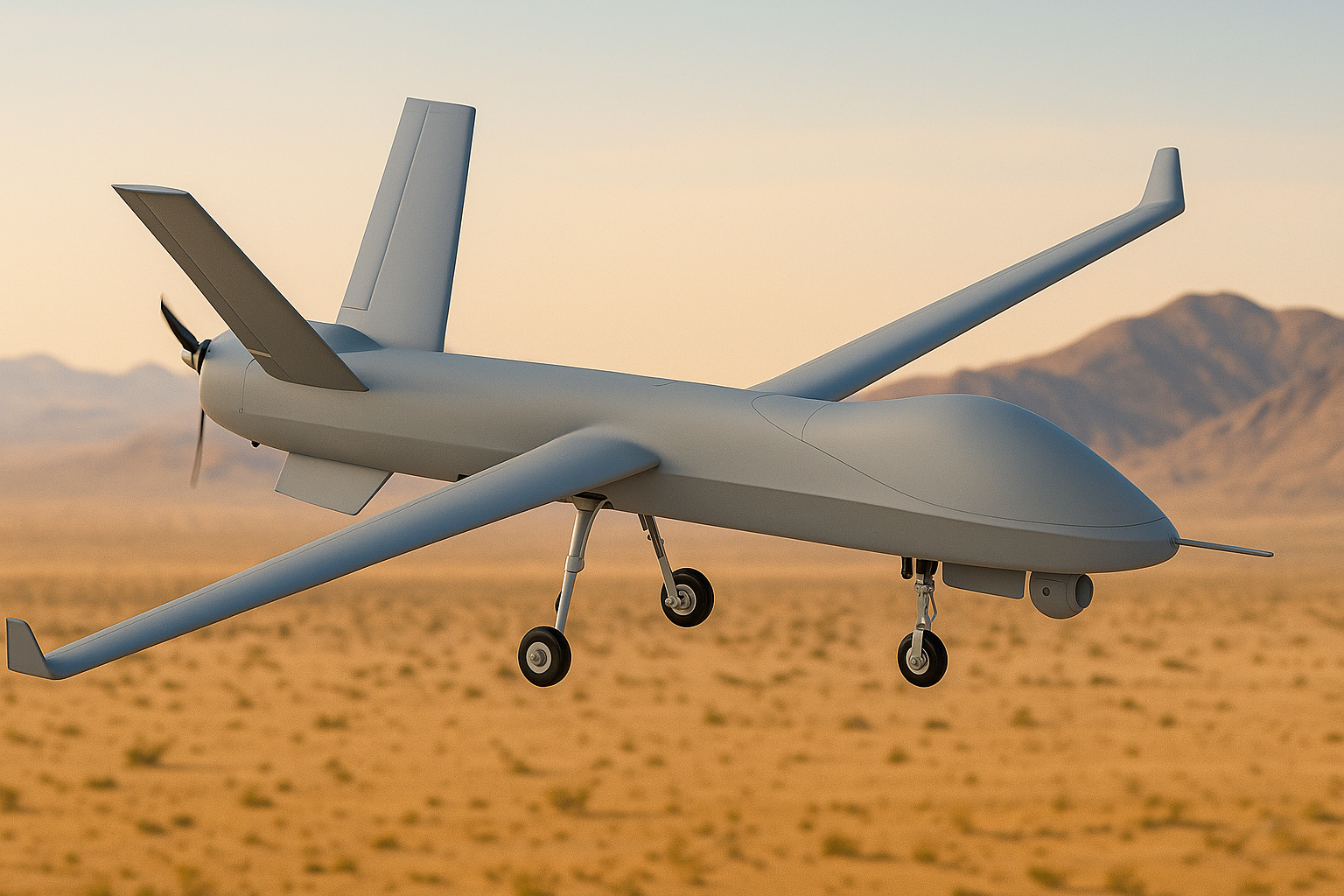

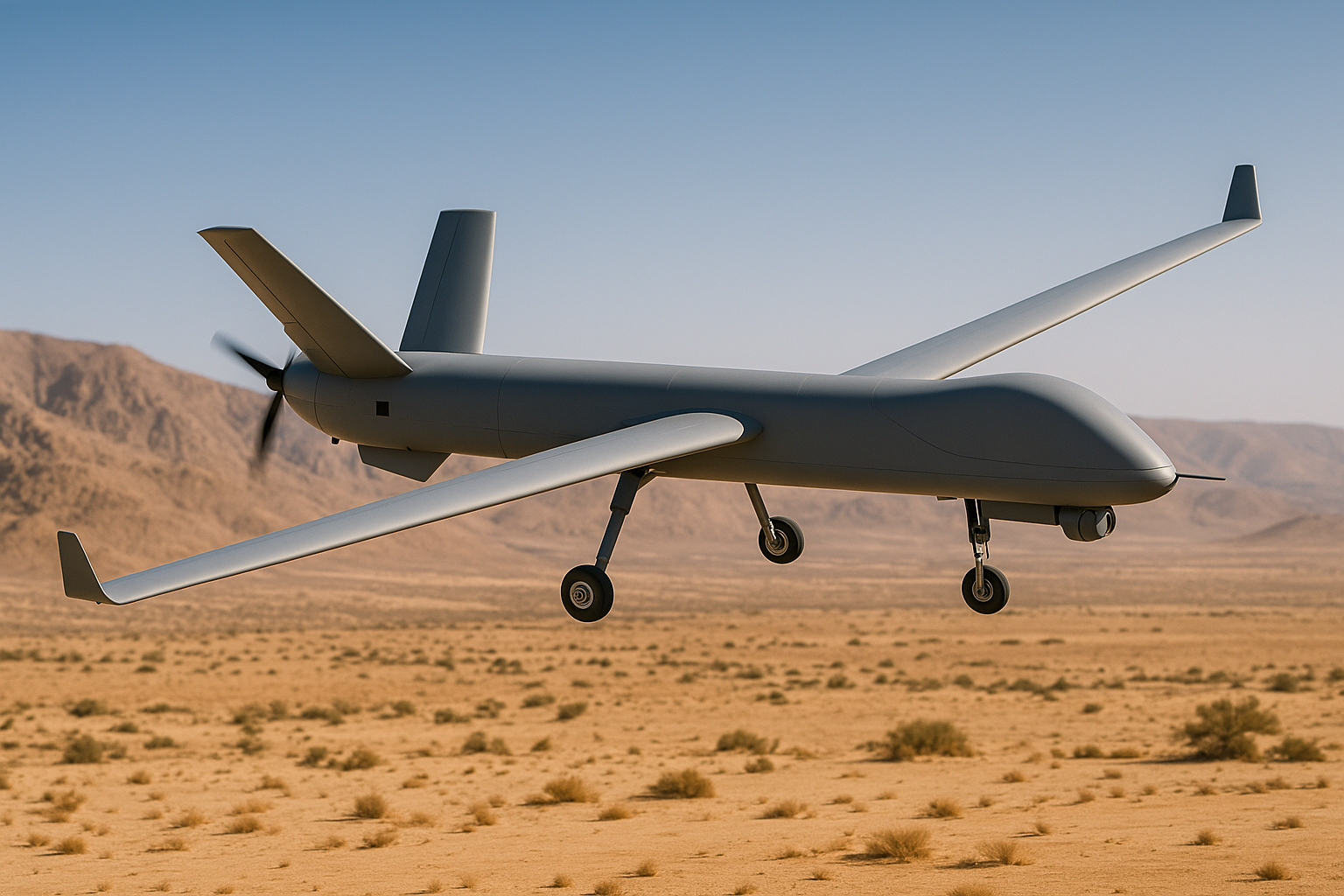

The HK-PASSKE is a 500 kg-class, modular, long-endurance unmanned aerial system designed for multi-role reconnaissance and precision missions. With a high-aspect-ratio single-wing design, V-tail configuration, and piston propulsion system, HK-PASSKE combines aerodynamic efficiency with robust payload capacity. Its advanced electro-optical and sensor integration enables both tactical and strategic operations — from wide-area reconnaissance to precision strike — across civilian and defense applications.
HK-PASSKE
500kg class MALE UAV · 38h endurance · 5700km range · Reconnaissance & strike integrated · Piston engine
Length
5500 mm
Wing Span
12200 mm
Range
5700 km
Cabin Load
60 kg
Endurance
38 h
External Load
150 kg
Max Speed
250 km/h
Cruising Speed
150 km/h
Max Takeoff Weight
550 kg
Hardpoints
2 wings (4× 20kg) + 1 belly (100kg)
Ceiling
5500 m
Data Link
300 km
Climb Rate
4.3 m/s
Runway
500 m (10m wide highway level)
Power
Piston Engine
Mission Capability
Integrates high-performance electro-optical pods, SAR radar, and precision guided munitions. Suitable for reconnaissance & surveillance, ground attack, damage assessment, wide-area search, counter-terrorism and forest fire prevention operations.
Use Cases
- Long-endurance persistent ISR over wide operational areas
- Multi-role reconnaissance and precision strike on a single platform
- Wide-area search and counter-terrorism operations
- Damage assessment and battle damage evaluation missions
- Forest fire detection, monitoring and suppression support
- Highway-level runway operation for forward basing flexibility
Key Features
- 38-hour endurance and 5700km range for true persistent coverage
- 150kg external payload across three hardpoints for flexible loadout
- High aspect ratio wing delivers exceptional aerodynamic efficiency
- 300km data link for beyond line-of-sight command and control
- V-tail and dual pelvic fin layout for enhanced stability
- Highway-compatible takeoff and landing requirements
