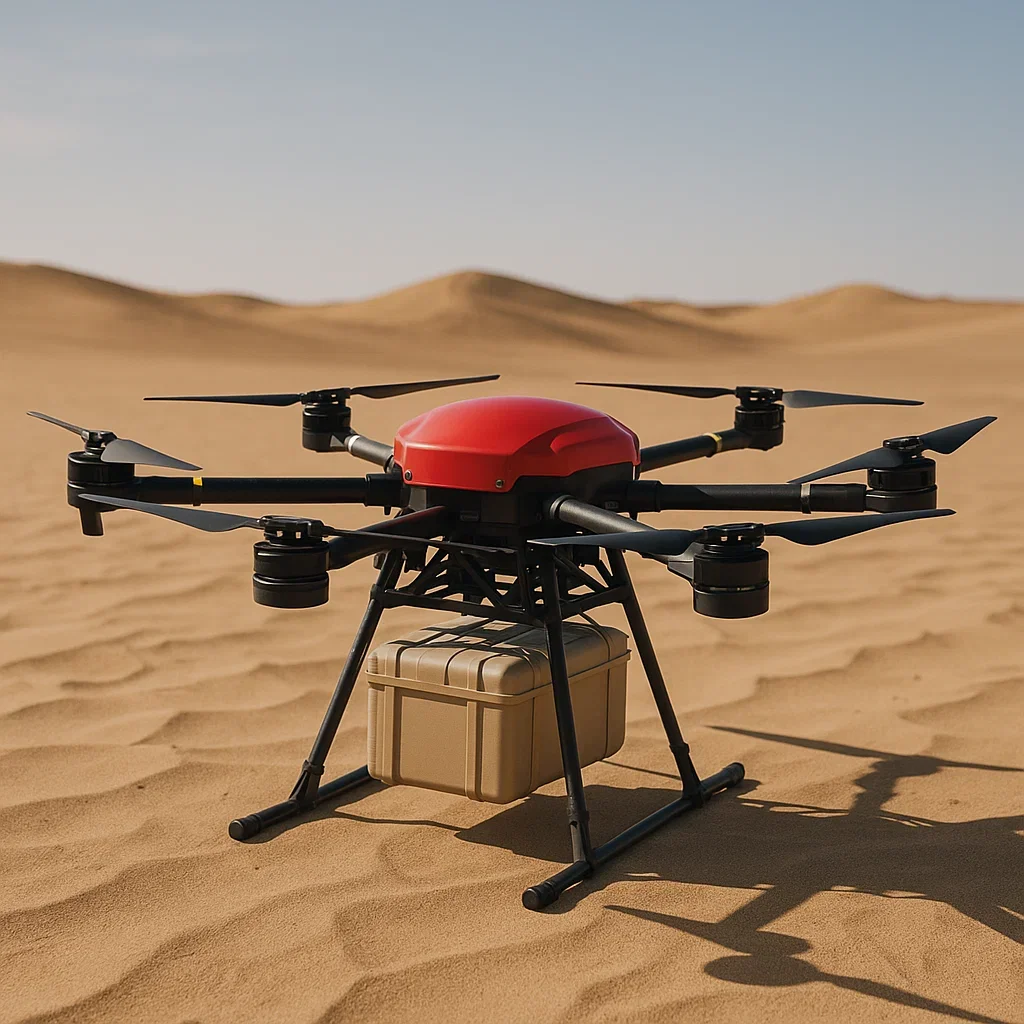

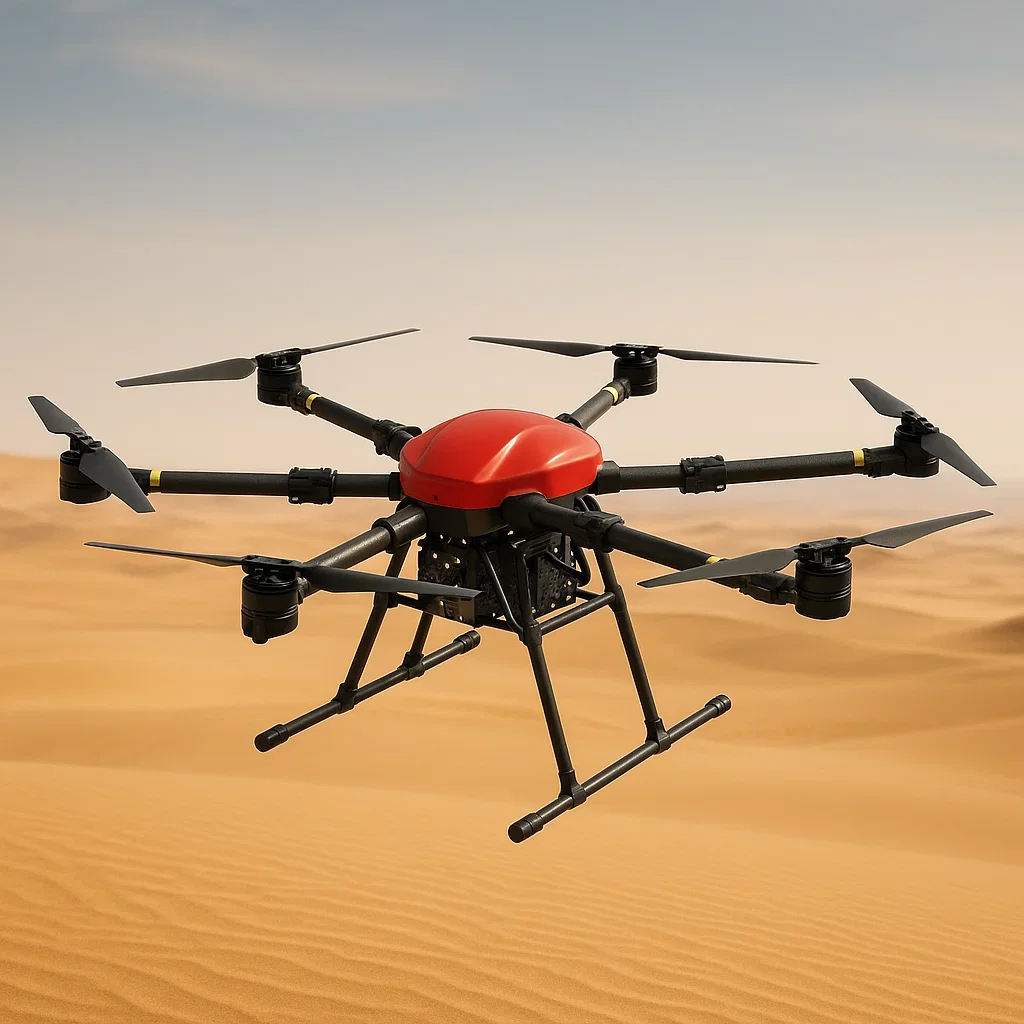

HK-M615 / M620

Scalable aerial transport for industrial and emergency logistics

Compact, stable, and built for everyday heavy-lift work.

The HK-M615/M620 series is a modular heavy-lift hexacopter platform designed for aerial logistics, emergency response, industrial support, and structured drone training missions. Built around a reinforced integrated fuselage frame, the series offers excellent strength-to-weight performance while remaining compact and easy to deploy.

Both variants share the same foldable architecture and IP65-rated environmental protection, ensuring reliable operation in dust, rain, wind, and harsh terrain. The difference lies in lift class:

  • HK-M615 is optimized for light-to-medium industrial payloads with maximum agility and quick deployment.

  • HK-M620 extends payload and endurance for heavier transport and longer mission durations.

With open payload mounting and multi-spec battery compatibility, both platforms support delivery pods, hoist/winch systems, firefighting modules, sensor packages, and OEM-custom integration.

HK-M615 / M620
Modular hexacopter transport platforms · IP65 · Universal market battery · Embracing folding design
M615 Configuration
Hexacopter · 1600mm wheelbase
M615 Folded Size
850 × 960 × 600 mm
M615 Unfolded Size
1470 × 1690 × 600 mm
M615 Product Weight
13.1 kg (no battery)
M615 Task Payload
15 kg
M615 Max Takeoff Weight
34 kg
M615 Battery
6S 22000mAh × 2
M615 Empty Flight
20 min
M615 Load Flight
10 min
M620 Configuration
Hexacopter · 1800mm wheelbase
M620 Folded Size
1160 × 1080 × 680 mm
M620 Unfolded Size
1920 × 1680 × 680 mm
M620 Product Weight
17 kg (no battery)
M620 Task Payload
20 kg
M620 Max Takeoff Weight
50 kg
M620 Battery
14S 30000mAh × 2
M620 Empty Flight
60 min
M620 Load Flight
20 min
Max Flight Speed
8–15 m/s (both)
Platform Advantages
Modular integrated body with integrally formed frame for simplified assembly. IP65 sealed casing — waterproof, dustproof and internal circuit protection. Embracing and folding design reduces aircraft footprint and assembly time. Universal market battery (6S–14S) · Battery size: 250×230mm · Bulk shipment: 815×415×260mm
Use Cases
  • Heavy object transportation across varied terrain types
  • Firefighting with airborne suppression delivery in M430-class operations
  • Emergency rescue material delivery and supply drops
  • Drone training programmes requiring reliable multi-rotor platforms
  • Industrial material logistics reducing workforce exposure
Key Features
  • Hexacopter configuration provides redundancy — continues flight if one motor fails
  • IP65 waterproof and dustproof for all-weather reliability
  • Modular integrated body with integrally formed frame for fast assembly
  • Universal battery compatibility (6S–14S) reduces logistics complexity
  • Embracing folding design reduces stored and transported footprint
  • M615 and M620 variants cover 15kg and 20kg payload requirements respectively
IP65 Hexacopter Redundancy Modular Body Universal Battery Firefighting Emergency Rescue
