Investigate H9

Enterprise-grade multi-mission system

Endurance meets intelligence.

The Investigate H9 is a professional hexa-rotor platform built for demanding enterprise operations. Powered by solid-state dual batteries, it delivers up to 65 minutes of unloaded flight time and carries payloads up to 4 kg with a maximum takeoff weight of 10.1 kg. RTK positioning achieves centimetre-level accuracy, while 360° omnidirectional obstacle detection and a 15 km control range ensure safe, extended operations. Three independent payload ports — two underside, one top-mounted — allow simultaneous multi-payload configurations without additional brackets. An open SDK and API enable rapid integration of third-party payloads, custom control software, and cloud management platforms. From inspection and public safety to surveying and search and rescue, the H9 adapts to the mission.

Flight Endurance
Payload
TB12 Battery
TB16 Battery
Unloaded
57 min
65 min
500 g
51 min
57 min
1 kg
45 min
52 min
2 kg
37 min
42 min
3 kg
31 min
35 min
4 kg
26 min
—
Platform Specifications
Airframe
ConfigurationHexacopter
Dimensions (unfolded)990 × 810 × 495 mm
Empty weight3.3 kg
Weight (2× TB12)6.1 kg
Weight (2× TB16)6.6 kg
Max takeoff weight10.1 kg
IP ratingIP43
Onboard NPU6 TOPS
Flight Performance
Max horizontal speed18 m/s
Speed (obstacle avoidance on)12 m/s
Max ascent speed5 m/s
Max descent speed4 m/s
RTK accuracy (horizontal)1 cm + 1 ppm
RTK accuracy (vertical)1.5 cm + 1 ppm
Obstacle detection40 m, 360° omnidirectional
Max control range15 km
Remote Controller & Charging
Remote Controller
Display7-inch high-brightness
Operating systemAndroid 13
Battery life8 hours
Transmission2.4 GHz & 5.8 GHz
SoftwareDataPilot 3
CBox Charging Case
Battery slots4
RC quick charge port1
Max charging power1100 W
Camera Payloads
E11T
Quad-Sensor Gimbal
Wide1/2" SONY 48MP, 24mm
Zoom1/2" SONY 48MP, 81–270mm
Hybrid zoom11x
Thermal640 × 512, 13mm
Rangefinder1200 m
AI6 TOPS
Weight300 g
E40T
Penta-Sensor Gimbal
Visible48 MP
Hybrid zoom40x
Thermal1280 × 1024
Rangefinder3000 m
NIR lightYes
AI6 TOPS
C10P
3-Axis Gimbal
Sensor1/2.7"
Focal length2.4 mm
Photo1080P
Video720P
Gimbal accuracy0.1°
Weight61 g
C20N
Night Vision Zoom Gimbal
Zoom22x
Resolution1080P
Fill lightCoaxial zoom
Expansion Payloads

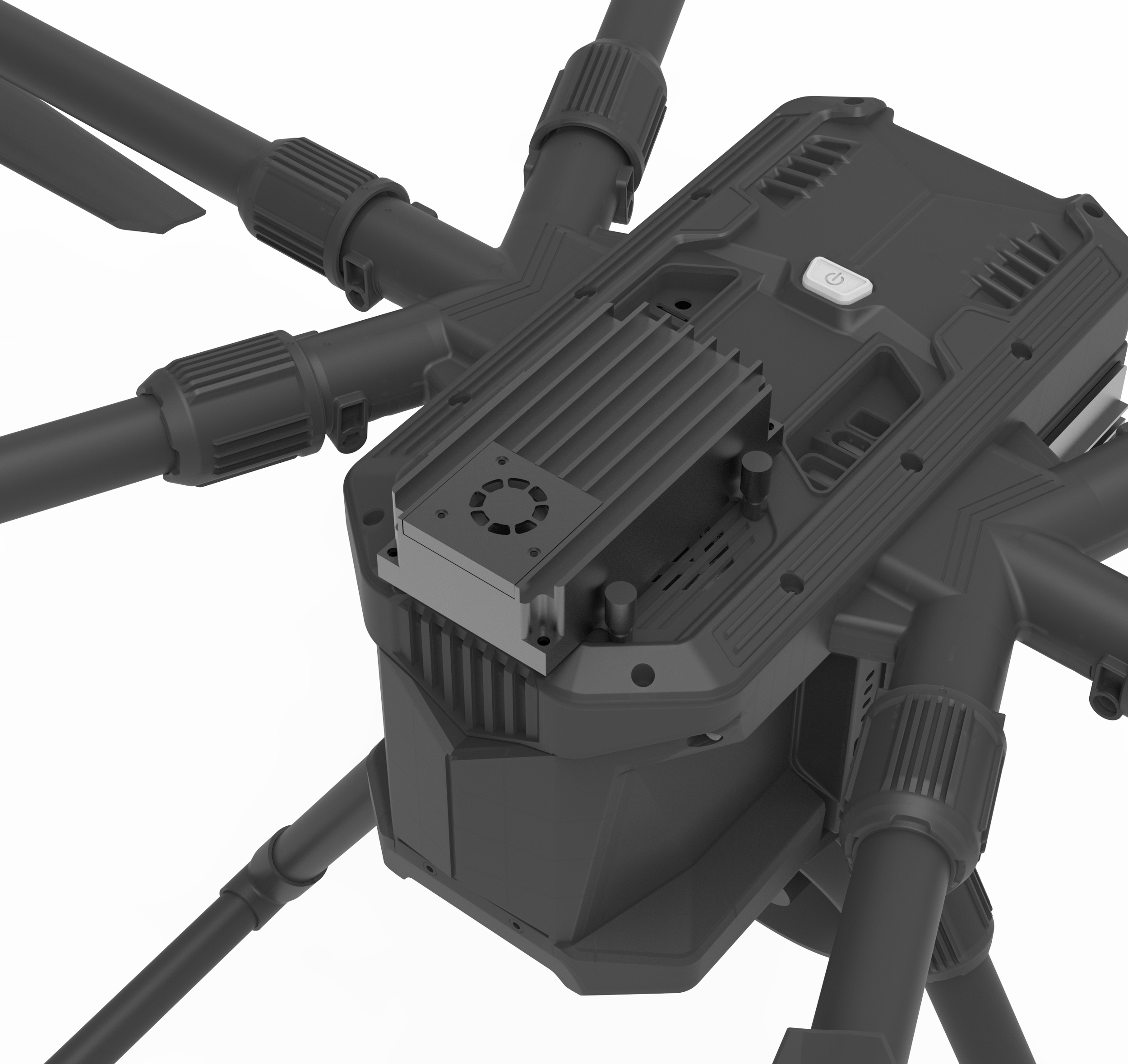

OR08 — Onboard AI Computer
ProcessorNVIDIA Jetson Orin
Max compute67 TOPS (Super mode)
Storage256 GB SSD
InterfacesEthernet, WiFi, USB-C
Pre-installedJetPack, PyTorch, YOLO
SDKPython (camera, comms, payload)
InstallationPlug-and-play

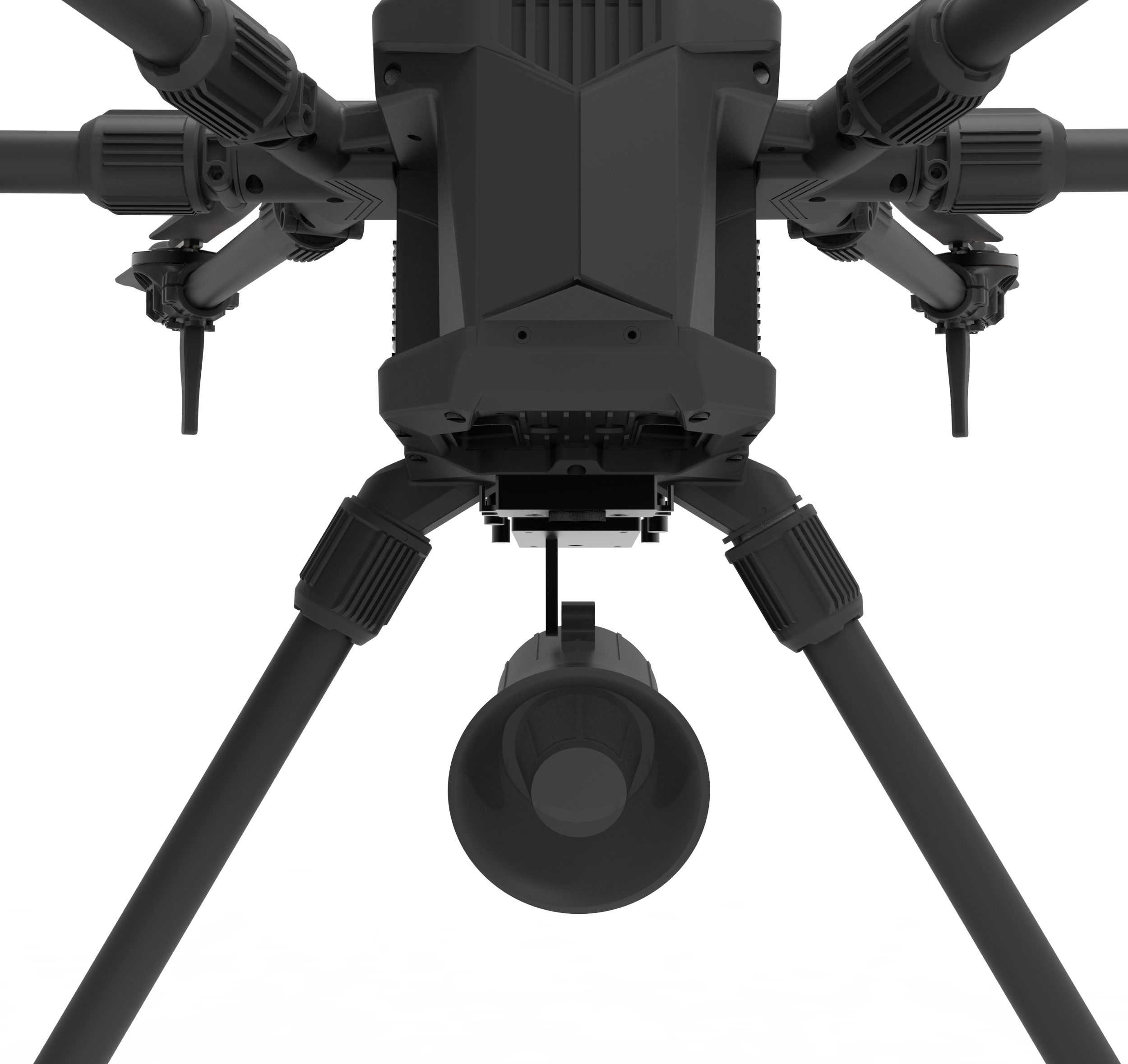

MG02 — Megaphone
Peak SPL124 dB
Auto gainYes
ModesLive, recorded, TTS, loop
AI synthesisNPU-integrated
LanguagesChinese, English, German, French +
ControlAuto-follows main camera
