HK-G03/G12
Compact pure-electric VTOL UAV
Lightweight agility with autonomous precision.
The HK-G series is a family of lightweight, high-strength electric VTOL UAVs designed for precision, endurance, and ease of deployment. Built using integrated carbon fiber molding technology, they offer a durable and aerodynamic structure optimized for mobility and field performance. The aircrafts support fully autonomous takeoff and landing, featuring a modular quick-release design for fast transport and setup. The HK-G series provides reliable mission capability for industrial inspection, mapping, and environmental monitoring.

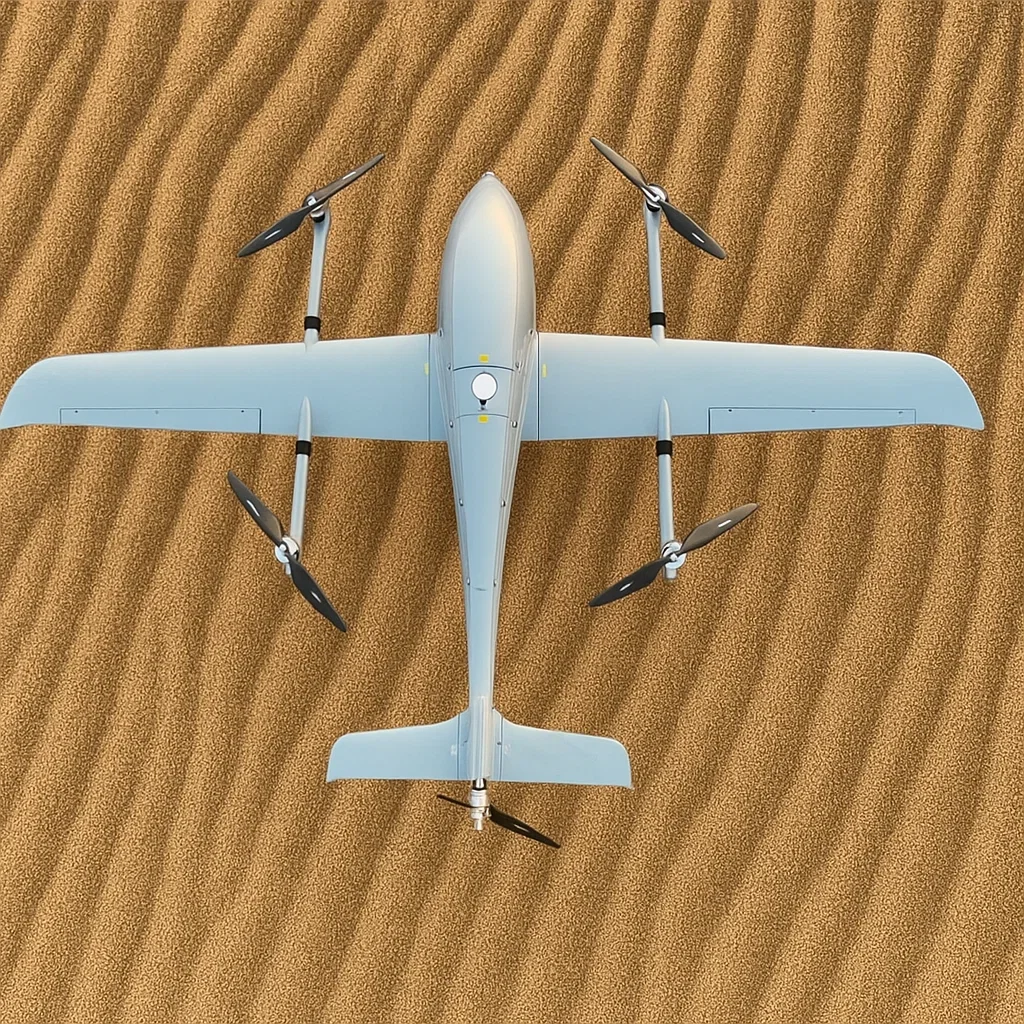

HK-G12
Tail-push VTOL fixed-wing · Carbon fibre · 12kg payload · 3.5h endurance @ 5kg · Open modular architecture
Length
1880 mm
Wing Span
3500 mm
Endurance
3.5h (5kg) · 2.3h (8kg) · 1.2h (10kg) · 1h (12kg)
Max Takeoff Weight
33.5 kg
Task Payload
12 kg
Std Unloaded Weight
25 kg
Operation Temp
-20°C ~ -45°C
Cruising Speed
90–120 km/h
Body Material
Aerial carbon fibre composite
Wind Loading
Level 6–7
Use Cases
- Precision mapping and photogrammetry with multi-sensor payloads
- Inspection of linear infrastructure including pipelines and power lines
- Search and rescue support with rapid deployment from aviation box
- Agricultural surveying and crop health monitoring
- Environmental monitoring requiring flexible third-party payload integration
Key Features
- Carbon fibre integral moulding — high strength, lightweight and durable
- Quick-release design with shockproof aviation box for safe transport
- 12kg effective payload capacity with 3.5h endurance at 5kg
- Open modular architecture supports third-party payloads, radio and control options
- Pure electric VTOL with fully autonomous and precise landing
- Wind loading Level 6–7 for operations in challenging conditions
HK-G03
Tail-push VTOL fixed-wing · Carbon fibre · 3kg payload · 3.5h endurance @ 1.2kg · Compact & portable
Length
1260 mm
Wing Span
2500 mm
Endurance
3.5h (1.2kg) · 3h (2kg)
Max Takeoff Weight
14 kg
Task Payload
3 kg
Std Unloaded Weight
9 kg
Operation Temp
-20°C ~ -45°C
Cruising Speed
70–80 km/h
Body Material
Aerial carbon fibre composite
Wind Loading
Level 6–7
Use Cases
- Compact survey and mapping missions requiring VTOL flexibility
- Small-area inspection and monitoring with lightweight sensor payloads
- Training and pilot certification for fixed-wing VTOL operations
- Rapid deployment reconnaissance from confined operating areas
- Cost-effective platform for organisations requiring VTOL entry-level capability
Key Features
- Smallest platform in the G-series — compact and easily portable
- Carbon fibre integral moulding delivers durability at minimal weight
- VTOL with fully autonomous and precise landing capability
- Open modular architecture for third-party payload and radio integration
- Wind loading Level 6–7 for reliable all-weather performance
- Quick-release design with shockproof transport packaging
