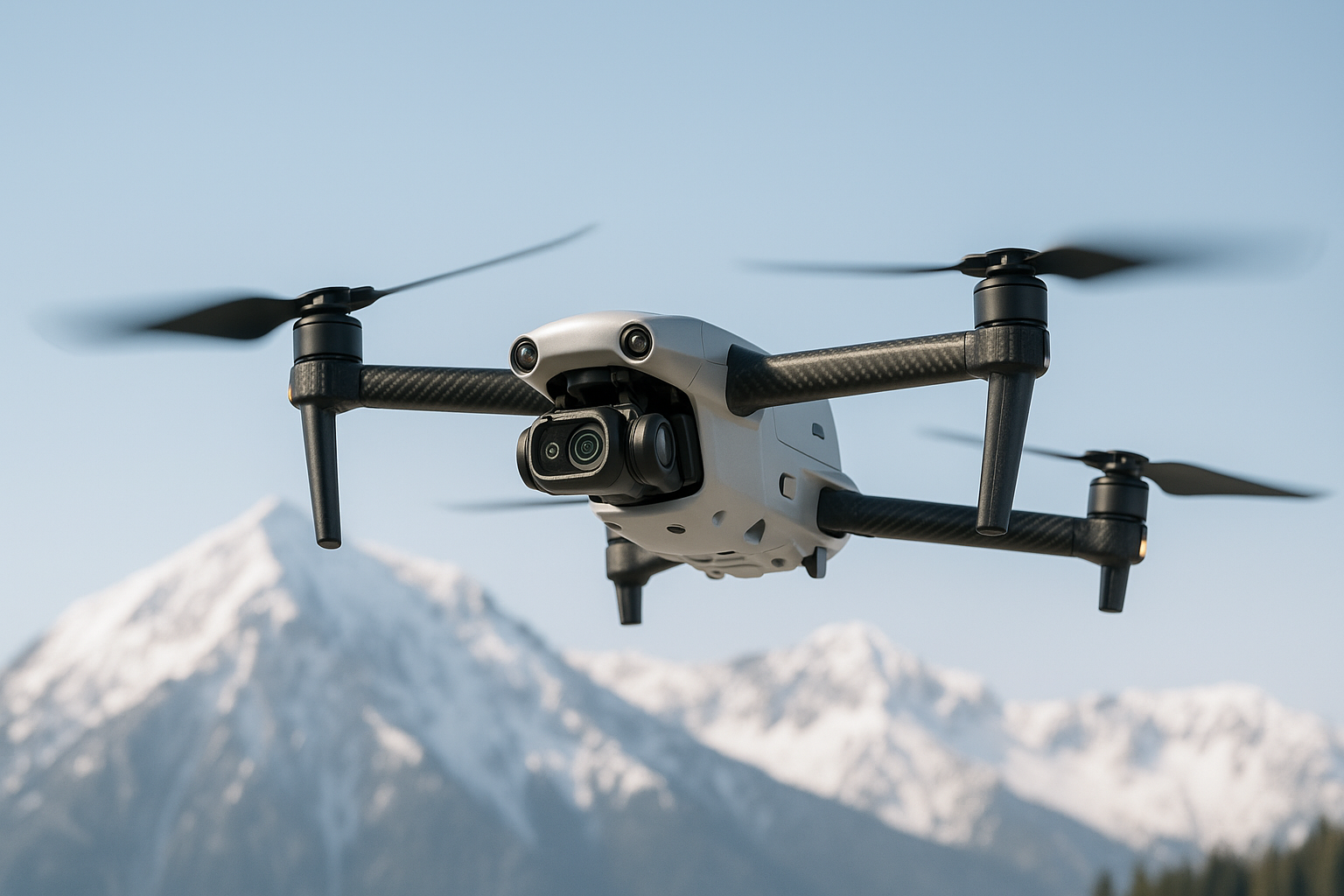

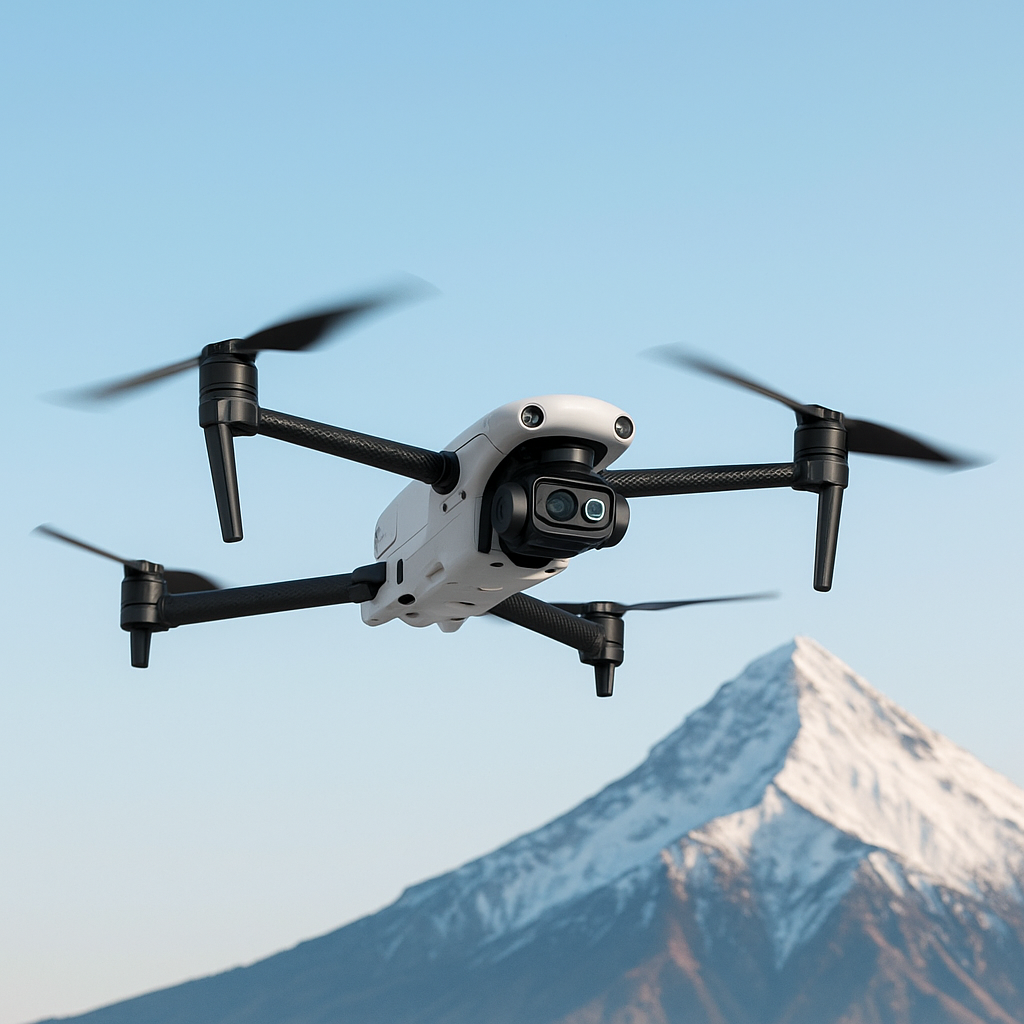

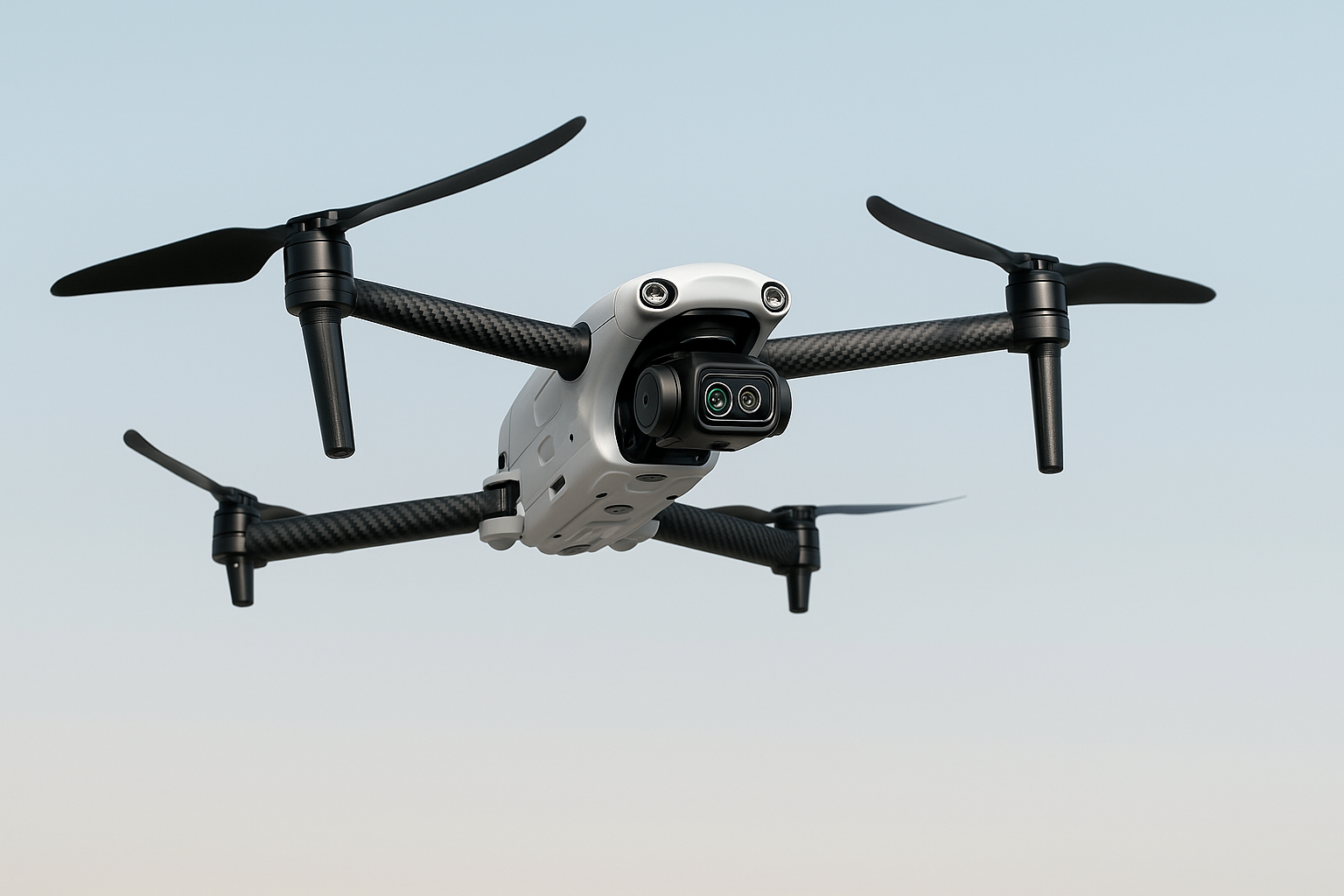

Investigate S1
Mid-range tactical ISR platform
Dual-sensor clarity meets AI autonomy.
The Investigate S1 merges compactness and tactical precision. Featuring a 16× zoom dual-beam infrared camera and 6K imaging, it excels in target detection and thermal recognition. AI-assisted obstacle avoidance ensures safe and stable operation across complex terrains.
S1
Compact & portable for rapid deployment · AI Target Recognition & Geolocating · 640×512 IR Thermal
Weight
900 g
Wheelbase
368 mm
Folded Size
210 × 123 × 95 mm
Unfolded Size
433 × 516 × 95 mm
Endurance
36 min
Max Control Range
12 km
Protection Grade
IP43
Ceiling
800 m
Wind Resistance
10 m/s
Operation Temp
-10°C ~ +40°C
T1 Dual-Sensor Gimbal
Thermal: 640×512 · 9.1mm · 16× digital zoom · -20°C to 550°C temp range · ±3°C accuracy
Visible Light: 1/2" CMOS · 48MP · F2.8 · 16× digital zoom · 8000×6000 photo · 4K 30P video
Video Transmission: 12 km · 1080P/30FPS · <200ms latency · 2.4GHz/5.8GHz
Visible Light: 1/2" CMOS · 48MP · F2.8 · 16× digital zoom · 8000×6000 photo · 4K 30P video
Video Transmission: 12 km · 1080P/30FPS · <200ms latency · 2.4GHz/5.8GHz
Use Cases
- Police enforcement and public security patrols
- Emergency search & rescue with AI target geolocating
- Night-time surveillance using 640×512 thermal imaging
- Rapid deployment from backpack for forward reconnaissance
- Traffic monitoring and crowd management
Key Features
- Compact form factor optimised for fast single-operator deployment
- T1 dual-sensor gimbal combining 48MP visible and 640×512 thermal
- AI target recognition identifies and geolocates multiple objects simultaneously
- Tri-directional binocular vision for safe obstacle avoidance
- AES-encrypted data transmission with multi-layer privacy protection
- 6-inch display remote with 3h runtime and offline map support
