HK-H10/H13/H15
Heavy-lift hexacopter platforms
Power, precision, and endurance for demanding aerial operations.

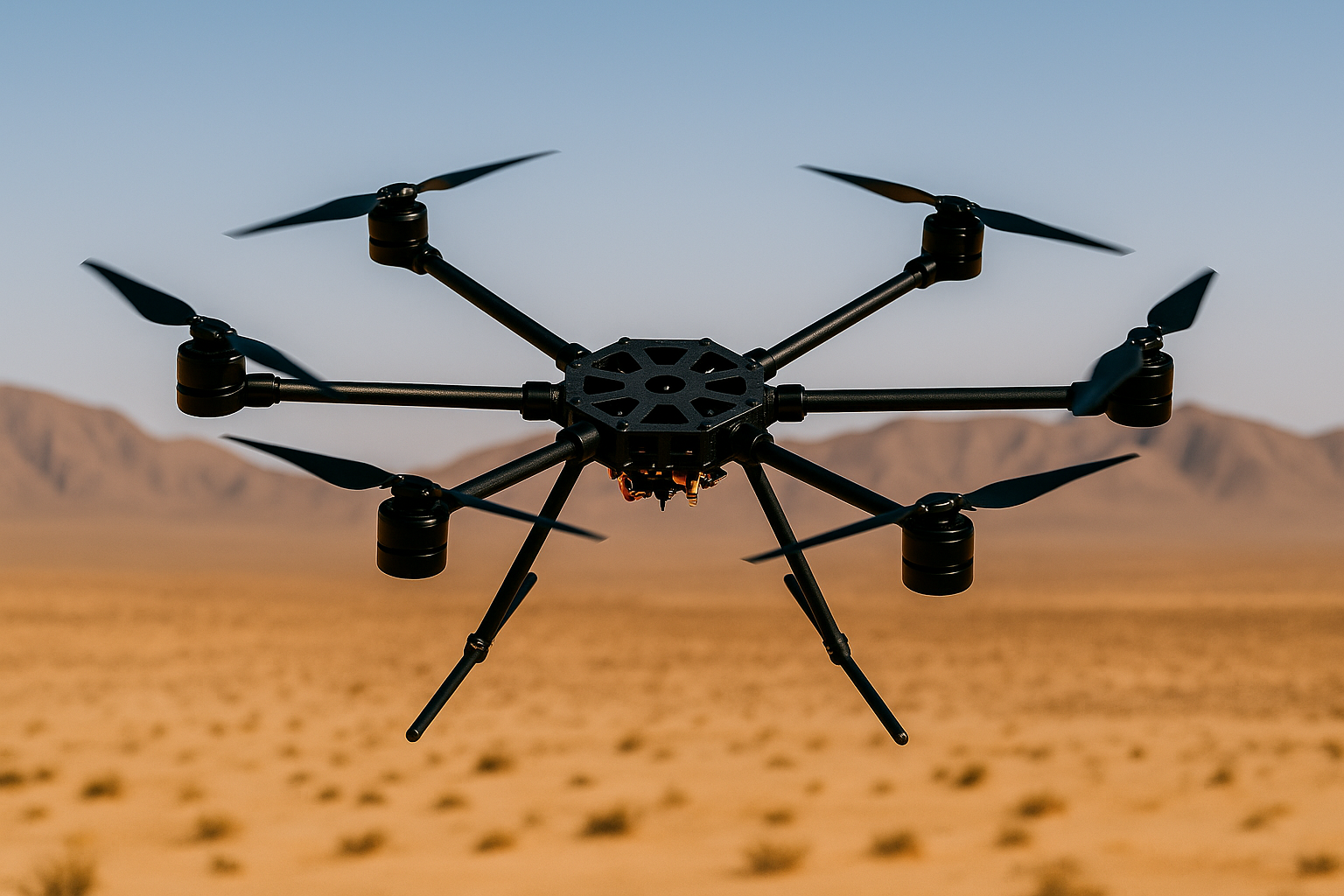

The HK-H Series is a lineup of advanced heavy-duty hexacopters engineered for stable performance under challenging conditions. Available in 10-inch, 13-inch, and 15-inch rotor configurations, the series combines powerful propulsion with modular architecture to support a wide range of payloads. Each aircraft features a carbon-composite frame, customized flight control, and long-range 5.8G image transmission, ensuring smooth flight dynamics and precise control. With a ceiling of 5000 m and a maximum takeoff weight of up to 19.5 kg, the HK-H Series delivers dependable performance for inspection, logistics, mapping, and industrial applications.
HK-H Series
FPV hexacopter strike & reconnaissance platforms · H10 · H13 · H15 · 6-rotor redundancy · 5000m ceiling
H10 Size
456 × 456 × 60 mm
H10 Weight
1950 g
H10 Rotors
6
H10 Flight Control
BLF405/6S-60A
H10 Electrical Machinery
3115 900KV
H10 Propeller
1050
H10 Battery
6S 8000mAh × 2
H10 Rated Load
5 kg
H10 Max Takeoff Weight
9 kg
H10 No-load Endurance
30 min
H10 Full-load Endurance
15 min
H10 Max Speed
156 km/h
H10 Range
20 km
H10 Ceiling
5000 m
H13 Size
850 × 850 × 105 mm
H13 Weight
3800 g
H13 Rotors
6
H13 Flight Control
BLF405/2-8S-80A
H13 Electrical Machinery
4214 400KV
H13 Propeller
1310
H13 Battery
8S 12000mAh × 2
H13 Rated Load
7.5 kg
H13 Max Takeoff Weight
15 kg
H13 No-load Endurance
45 min
H13 Full-load Endurance
18 min
H13 Max Speed
136 km/h
H13 Range
20 km
H13 Ceiling
5000 m
H15 Size
1150 × 1150 × 105 mm
H15 Weight
4500 g
H15 Rotors
6
H15 Flight Control
BLF405/2-8S-80A
H15 Electrical Machinery
4218 330KV
H15 Propeller
1507
H15 Battery
8S 16000mAh × 2
H15 Rated Load
9 kg
H15 Max Takeoff Weight
19.5 kg
H15 No-load Endurance
55 min
H15 Full-load Endurance
18 min
H15 Max Speed
126 km/h
H15 Range
20 km
H15 Ceiling
5000 m
Camera (all)
2000TVL
Image TX (all)
5.8G VTX
Receiver (all)
ELRS915
Payload Options
Camera: 2000TVL · AI tracking module · Full-colour night vision · IR camera · Visible+IR dual light camera
Accessories: LNB · Fiber optic module · Battery · Charger · FPV glasses (5.8GHz, built-in DVR) · Display screen
Accessories: LNB · Fiber optic module · Battery · Charger · FPV glasses (5.8GHz, built-in DVR) · Display screen
Use Cases
- Heavier payload delivery requiring hexacopter lift and redundancy
- High-altitude operations up to 5000m ceiling
- Extended endurance FPV reconnaissance with 55-minute no-load flight
- Operations requiring motor redundancy — maintains flight on five motors
- Multi-role missions combining camera observation with payload deployment
Key Features
- Three size variants — H10, H13 and H15 — covering 5kg to 9kg rated load
- 6-rotor hexacopter configuration provides motor redundancy for added safety
- 5000m service ceiling across all H-series variants for high-altitude operations
- H15 delivers 55-minute no-load and 18-minute full-load endurance
- 20km range across all variants with 5.8G VTX image transmission
- Fiber optic module option for EM-hardened data links in contested environments
